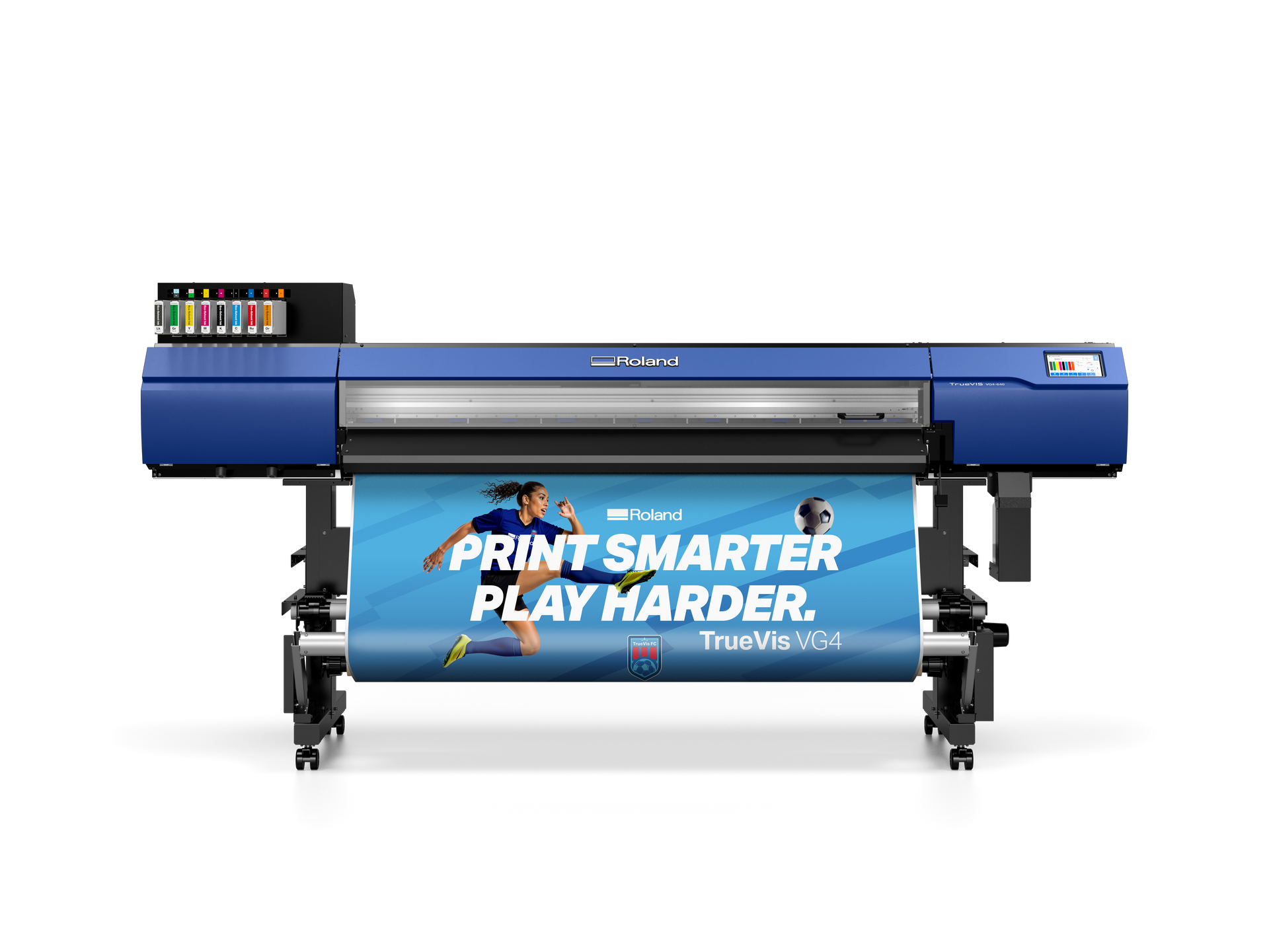

Roland TrueVIS VG4 Series
Large-format Inkjet Printer/Cutters
TrueVis is the benchmark for print & cut performance, and the VG4 Series is the next step in this legacy.
With a new print head, the latest TR3 eco-solvent inks, and workflow features designed to deliver premium results with confidence, day after day, VG4 helps you deliver consistently exceptional results.
Effortless Versatility
TrueVis VG4 balances speed, value, and premium quality. From everyday signage to high-impact speciality work, VG4 is built to keep quality high, production moving, and finishing simple.
WIDER COLOUR EXPRESSION
Latest TR3 inks extend colour options to include
Red, Orange, Green, Light Black and White.
WORK SMART

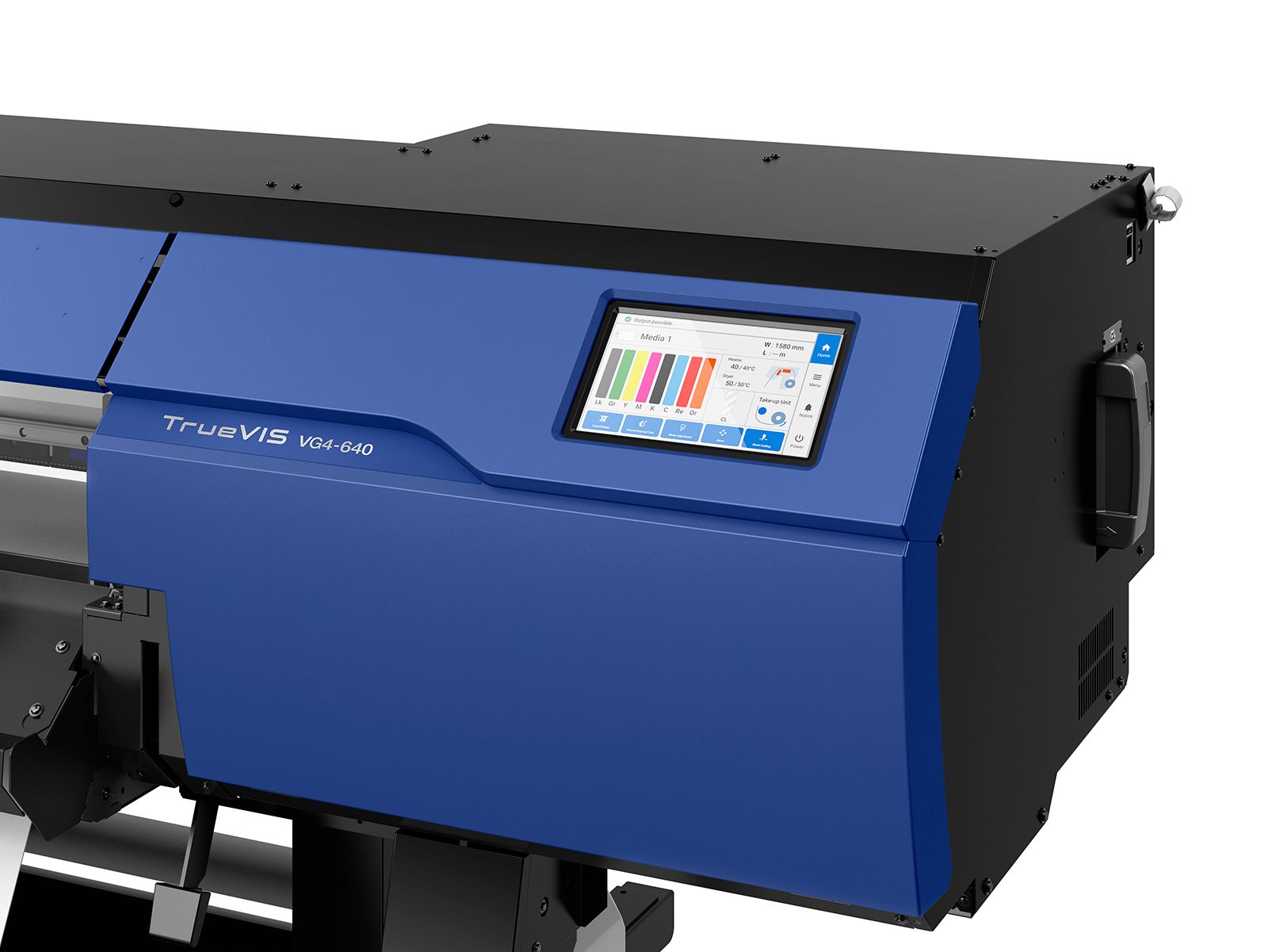

Print from the touch screen and use
VersaWorks and Roland DG Connect smart features.
BUILT FOR LONG RUNS
Improved take-up control for both printing
and cutting to support long print runs.
LOWER RUNNING COSTS
Better quality prints from less ink, consistent prints
for less waste and easier self-maintenance.
Reliable Print & Cut Productivity
Built on Roland DG’s print & cut expertise, VG4 introduces workflow improvements for stable output on longer print or print & cut runs.
Perforation cut allows simplified print separation and continued take-up to reduce post-print finishing time for sticker, label and decal work.
INCLUDED for both VG4-540 & VG4-640
3 Year Warranty
Dedicated Stands,
Power Cord,
Media Take-Up Unit,
Media Holders,
Replacement Blade for Separating Knife,
Cleaning Liquid,
Drain Bottle,
User’sManual, Software, etc.

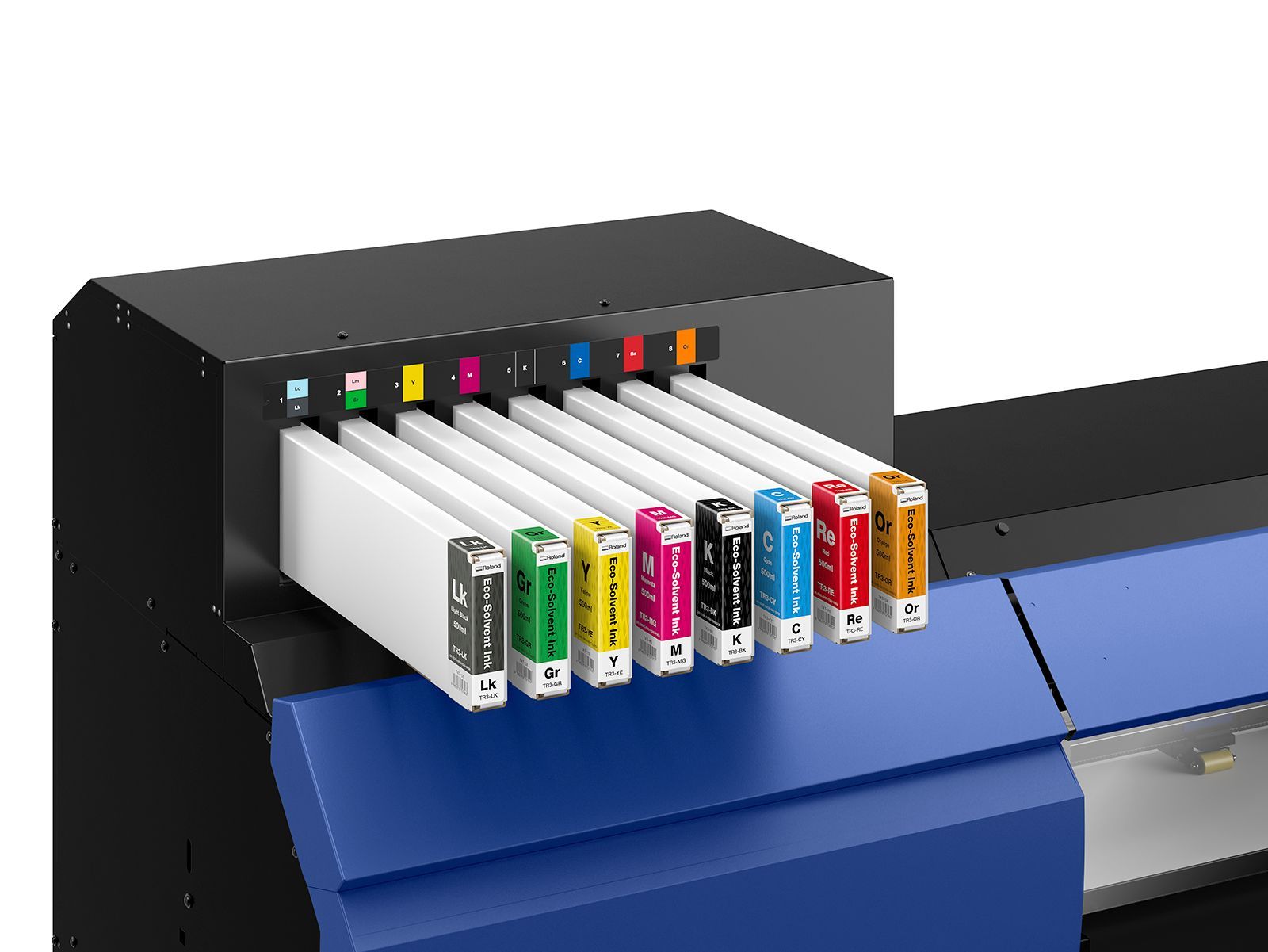

Ink Configuration
8 colours: CY MG YE BK LC LM OR RE CL
8 colours: CY MG YE BK LK GR OR RE CL
7 colours: CY MG YE BK OR RE WH WH CL
4 colours: CY CY MG MG YE YE BK BK CL
Print Speeds
VG4-540 | VG4-640
4 colours | Generic Vinyl 1
High Quality -1200x1200 dpi - 8p - 9.0 m²/h | VG4-640 - 9.4 m²/h
Standard - 900x1200 dpi - 6p - 14.9 m²/h | VG4-640 - 15.8 m²/h
High Speed - 900x600 dpi - 4p - 22.6 m²/h |
VG4-640 -23.7 m./h
8 colours | Generic Vinyl 1
High Quality -1200x1200 dpi - 16p - 4.5 m²/h | VG4-640 - 4.7 m²/h
Standard - 900x1200 dpi - 12p - 7.4 m²/h | VG4-640 - 7.8 m²/h
High Speed - 900x600 dpi - 8p - 11.1 m²/h |
VG4-640 - 11.6 m²/h
7 colours (Wh) - Generic Clear Vinyl - Standard
CMYKOrRe -> Wh - 16p - 1.4 m²/h | VG4-640 - 1.5 m²/h
Wh -> CMYKOrRe - 16p - 1.2 m²/h | VG4-640 - 1.2 m²/h
White - 900x1200 dpi - 16p - 5.5 m²/h |
VG4-640 - 5.8 m²/h
4 colours | Generic Banner 1
Standard - 900x1200 dpi - 6p - 14.9 m²/h | VG4-640 - 15.8 m²/h
High Speed - 600x1200 dpi - 3p - 24.2 m²/h | VG4-640 - 26.2 m²/h
Billboard - 600x1200 dpi - 2p - 36.1 m²/h | VG4-640 - 40.1 m²/h
$24,995*
TrueVIS VG4-540
TECHNICAL SPECIFICATIONS
Loadable Media Width
295 to 1,371 mm
Printable Width
Max. 1,346 mm
Media Thickness
Max. 1.0 mm (39.3 mil) with liner, for printing
Max. 0.4 mm (15.7 mil) with liner and
0.22 mm (8.6 mil) without liner, for cutting
Media Core Diameter
76.2 mm or 50.8 mm
Roll Weight
Max. 35 kg
Roll Outer Diameter
Max. 250 mm
Printing Resolution
Max. 1,800 dpi
Cutting Force
30 to 500 gf
Cutting Speed
10 to 300 mm/s
Dimensions
2,632 mm x 748 mm x 1,415 mm
Weight
182 kg
RIP Software
VersaWorks 7
Cloud Service
Roland DG Connect
$27,995*
TrueVIS VG4-640
TECHNICAL SPECIFICATIONS
Loadable Media Width
335 to 1,625 mm
Printable Width
Max. 1,600 mm
Media Thickness
Max. 1.0 mm (39.3 mil) with liner, for printing
Max. 0.4 mm (15.7 mil) with liner and
0.22 mm (8.6 mil) without liner, for cutting
Media Core Diameter
76.2 mm or 50.8 mm
Roll Weight
Max. 45 kg
Roll Outer Diameter
Max. 250 mm
Printing Resolution
Max. 1,800 dpi
Cutting Force
30 to 500 gf
Cutting Speed
10 to 300 mm/s
Dimensions
2,886 mm x 748 mm x 1,415 mm
Weight
189 kg
RIP Software
VersaWorks 7
Cloud Service
Roland DG Connect
