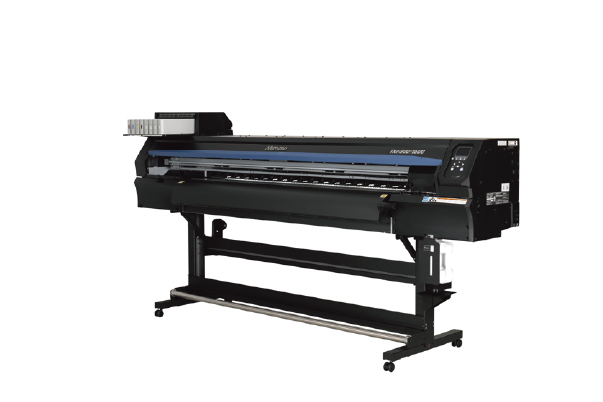

Mimaki TxF Series
DTF Fabric Printers
A quality production platform packed with advanced technology.
See below for Visual Impact specials!
The
TxF Series are DTF (direct-to-film) printers designed for garment and merchandise customisation. All feature 3-way heater systems and white ink recirculation. They support roll-based film up to 800mm wide and output in four colours (CMYK) plus White using PHT50 ink which ships in 600ml eco packs (500ml white). The ink has ECO PASSPORT certification for user safety when applied to textiles per the “OEKO-TEX®” standard.
There are now three models in the range.
TxF300-75 has similar features as the

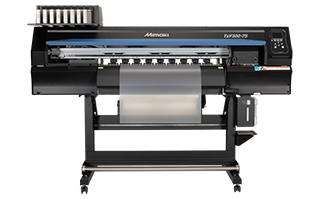

TxF150-75 but offers higher productivity. The new

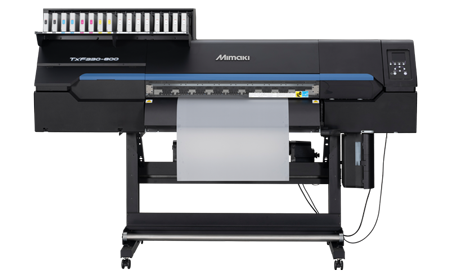

TxF330-800 extends productivity higher with the latest print engine, dual CMYK and EIGHT White ink carts with hot-swap.
Windbreaker Jackets (Nylon)
Decorate various fabric by one DTF print system
Sportswear (Polyester)
Decorate various fabric by one DTF print system
T-shirt (Cotton)
Decorate various fabric by one DTF print system
Tote bag (Cotton)
Decorate various fabric by one DTF print system
Reliable Operation with Consistent Output

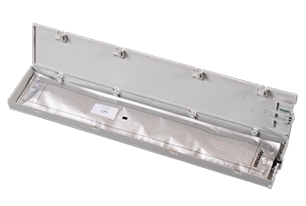

Mimaki inks ship in eco-friendly aluminium packs that load via a re-usable cartridge. Printers feature integrated degassing and MCTv2 white ink re-circulation. They also incorporate NCU nozzle status checking and and NRS nozzle recovery and substitution. Continuous production is facilitated while ensuring consistent, quality output.
Performance to Match Your Need
All models in this series provide high-quality output. The TxF150-75 features a piezo printhead with variable dot sizing & CMYK + DUAL White ink set. The TxF300-75 has Dual printheads for close to three times the speed and Four White cartridges that can be expanded to Eight with hot-swap support for uninterrupted extended operation. The new TxF330-800 features Mimaki's flagship 330 Engine that increases speed by a further 50% and ships in a standard configuration with EIGHT White carts and DUAL CMYK, all with hot-swap. An alternative configuration changes one of the Cyan carts for Sky Blue and one of the BlacK carts for Pale Pink enabling enhanced vivid colour expression.
Print condition: H300 x W400 mm graphics arranged on a fill-size DTF film and printed.

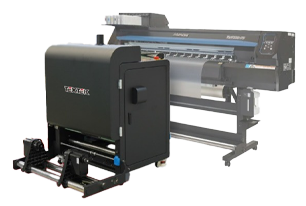

Optional D800 Powder Shaker
The D800 Powder Shaker is engineered to integrate with Mimaki's DTF printers. The unit applies powder evenly before baking and transferring to a take-up roll for subsequent cutting and application.
The unit features a compact footprint for reduced workspace requirements.

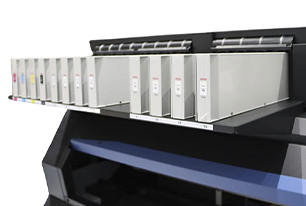

Optional Enhanced Ink Supply
The OPT-J0576 can be added to the TXF300-75 to increase the number of white ink cartridges from four to eight. It enables longer production runs with reduced operator management.
Additional UISS functionality improves work efficiency by allowing white ink replacement even while printing.
Optional Mimaki Total Care Service
Mimaki may build quality equipment but fabric is a messy business. When breakdowns occur they can be expensive to rectify. Total Care extends factory warranty up to as much as FIVE years. It works to reduce costs while protecting your investment and eliminating the unexpected. Best of all, costs can be included in a lease to fix your ROI.
Supplied with Software
The Mimaki TxF series comes complete with a suite of software.
RasterLink is an advanced RIP application that allows photo and graphic design images to be imported and combined with text and variable data. This material can then be adjusted to optimise output quality, ink and media utilisation. Files are processed before being sent to print with consistent and accurate output.
Mimaki PICT is a cloud based utility that enables equipment, production and consumable status monitoring. It provides real-time, historical and predictive data to support planning, management, support and service. It can be accessed from a desktop PC or remotely on a mobile device.
Key Features
- Supports roll media up to 800mm wide and 45kg weight
- Uses cost-effective ink in 500ml White and 600ml CMYK packs
- Has a compact footprint (1.38m2 for TxF150/300-75, 1.46m2 for TxF330-800)
- Provides high quality imaging with piezo printheads that support variable sized droplets
- Auto nozzle status checking, auto cleaning and auto nozzle replacement ensures quality output
- When operated with a Mimaki shaker/oven it enables an integrated single-vendor roll-to-roll platform
- Reliable operation backed by a 1 year warranty that can optionally be extended up to 5 years
- Supplied with an advanced RIP that includes support for variable data
- Choice of models;
- TxF150-75 offers production up to 2.6m2/hr with a Dual White supply for customers with low volume requirements
- TxF300-75 offers production up to 7.5m2/hr with a Quad White supply (expandable to Eight with UISS functionality)

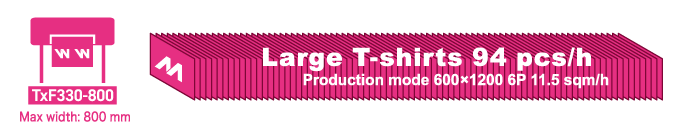

- TxF330-800
offers production up to 11.5m2/hr with a Eight Whites and Dual CMYK, all with UISS functionality (can alternatively be configured with a single C and K plus Sb and Pp ink for enhanced colour expression)
Machines Plus System Packages
Machines Plus doesn't just supply equipment. We help build the complete production setup.
We are colour and fabric specialists who understand manufacturing and business.
We work directly with customers to understand individual operation and production need.
To help you with this range way we present a selection of 'Business in a Box' solution packages.
If you are ready to proceed, give us a call so we can discuss suitability and refine your configuration.
VI Special!
Savings until end Dec 2026
Entry Production Pack
$113.54 inc. tax p/w
Mimaki TxF150-75 DTFilm Printer
-
Set of CMYKWW Ink (3.4 Litres)*
-
Mimaki Compact D800 Shaker/Oven
-
4 Rolls (400m) of 600mm Film
-
20kg of Powder
-
50 Sample Garments
-
Delivery*
-
6 Hours Set-Up
-
6 Hours Training*
-
RasterLink & PICT s/w
-
1 Year Warranty
VI Special!
Savings until end Dec 2026
Mid Production Pack
$175.85 inc. tax p/w
Mimaki TxF300-75 DTFilm Printer
-
Set of CMYKWWWW Ink (4.4 Litres)*
-
Mimaki Compact D800 Shaker/Oven
-
4 Rolls (400m) of 600mm Film
-
20kg of Powder
-
50 Sample Garments
-
Delivery*
-
6 Hours Set-Up
-
6 Hours Training*
-
RasterLink & PICT s/w
-
1 Year Warranty
New To Machines Plus
Contact us for shipping details
Volume Production Pack
$286.62 inc. tax p/w
Mimaki TxF330-800 DTFilm Printer
-
Choice of CMYK+W or CMYK SB PP+W (Creativity-focused): The addition of Sky Blue & Pale Pink Ink (8.8 Litres total)*
-
Mimaki Compact D800 Shaker/Oven
-
6 Rolls (600m) of 600mm Film
-
30kg of Powder
-
50 Sample Garments
-
Delivery*
-
6 Hours Set-Up
-
6 Hours Training*
-
RasterLink & PICT s/w
-
5 Year Warranty
Special Visual Impact pricing is available for a limited time. Act now to save thousands!
Pricing stated on this page includes GST. If you can claim exemption then your repayments will be less!
Finance is based on 60 month terms, is subject to confirmation and approval.
*Delivery, set-up, training and service cover is included for Metro Sydney, Melbourne and Brisbane areas, costs for other locations may vary.
Some ink and will be used to prime the printer during set-up (this is a once-off process).
