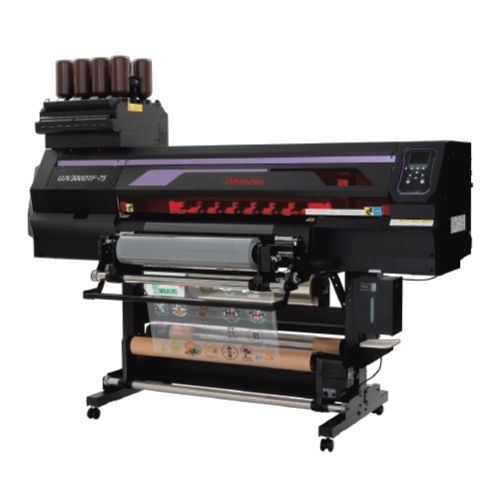

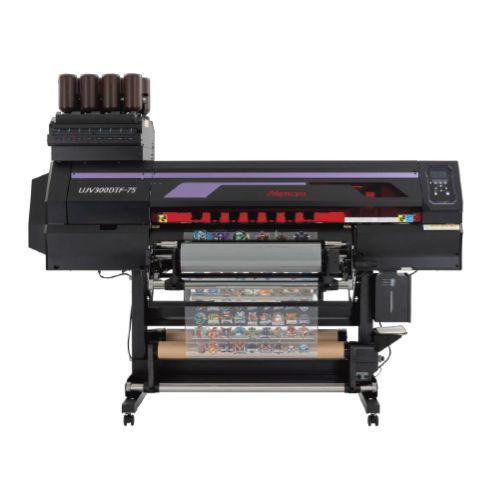

The UJV300DTF-75 is a UV DTF printer designed for cost-effective creation of value-added products and custom merchandise. Unlike traditional UV printing which applies ink directly to an object, UV-DTF prints on film with images then transferred to the target object. It uses special media that consists of two parts: a glued film and a transfer sheet.

There are many advantages with UV-DTF over direct UV printing. You don't require special jigs which saves in set-up cost, loading and unloading time. While the transfer process requires some labour, overall productivity tends to be much greater.The process supports a wider range of materials including Polypropylene (PP), Polyethlene (PE) and glass. It also works better with objects that have uneven or curved surfaces. Transfers can be produced in advance and applied on demand for reduced inventory and a more efficient workflow.

UV-DTF also has advantages over PVC stickers and PVC films.  Images are brighter, there is no requirement for weeding or residue removal, adhesion is better and prints are more durable.

Reliable and Flexible Operation

Quality Feed System

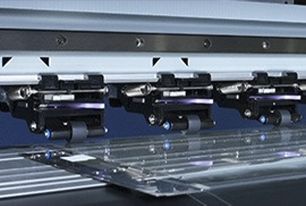

A pinch roller system developed specially for UV-DTF film ensures stable feeding. Glued film passes cleanly and evenly.

An optional Ionizer (OPT-J0465) can be added to further enhance reliability.

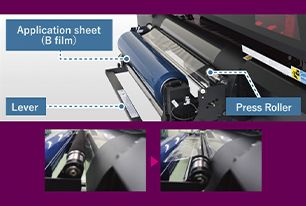

Easy Media Loading

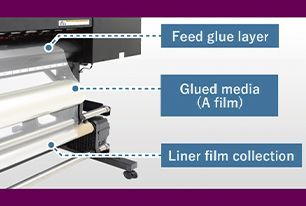

Advanced Take-Up System

Superior Ink

The UJV300DTF-75 uses a combination of hard ELH-100 and soft ELS-170 ink to achieve a balance between strength and flexibility. This is perfect for decorative work with good adhesion on a range of surfaces and industry-leading durability.

• ELS-170
  Cyan, Magenta, Yellow and K-Black
• ELH-100
  Clear and White

Better Outcomes

Mimaki’s ELS-170 and ELH-100 UV inks are GREENGUARD Goldcertified, having passed the world’s most stringent standards forchemical emissions. This certification ensures their suitability for usein sensitive environments such as schools and healthcare facilities. They are the ideal choice for consumer, operator and environmental responsible printing.

Pricing

Precautions for UV Printing

 Inks and substrates:

• It is recommended that users only operate with approved films. Please contact Machines Plus for appropriate stocks.
• Ink adhesion and image durability can vary depending on the transfer object and its intended usage. Some surfaces also benefit from the application of a primer before image transfer. It is recommended that test prints be produced before commencing production.

 Safety notice:

• Uncured UV ink should be handled with care. Operators must read the usage, loading and handling instructions found on packaging and published separately.
• The curing process for ink involves a high intensity UV lamp. Operators must not look directly into the light source, place hands or skin in a location where they are likely to be exposed.
• During the print process UV ink will emit some smell. Equipment should be operated in a well ventilated location.
• Operators must read and follow instructions and guidelines found in the Mimaki user manual along with any additional notices published by the manufacturer from time-to-time.
